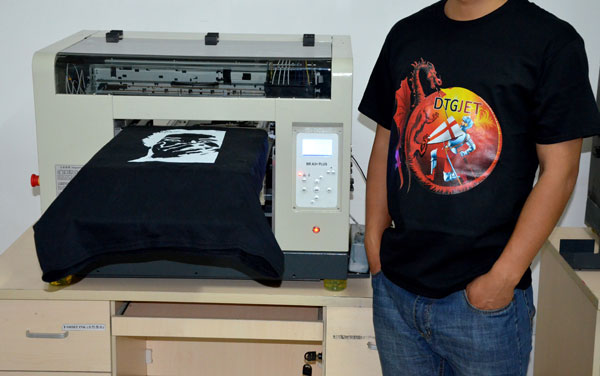

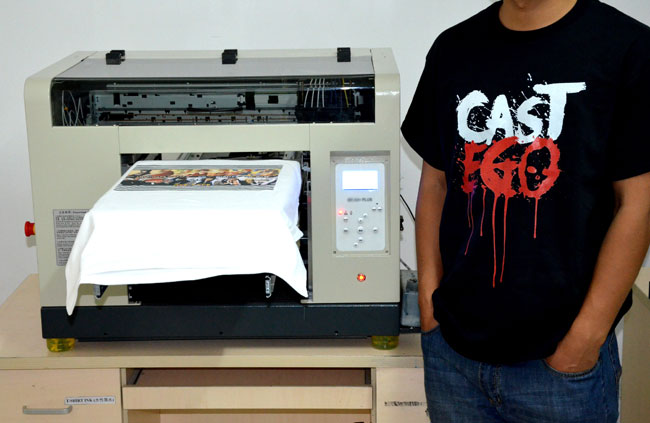

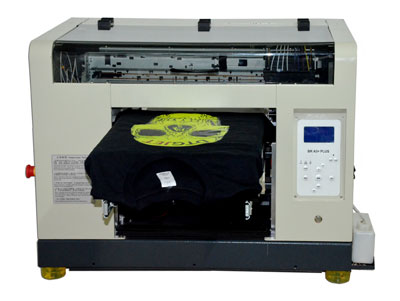

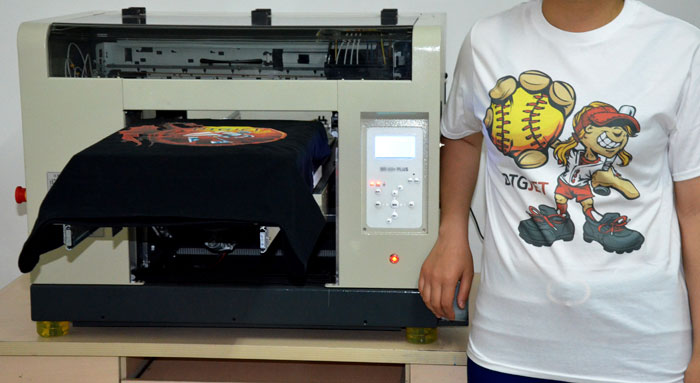

DTGJET TrueColor T1800 A3+ Portable DTG Printer

TrueColor T1800 direct to garment printer is with more production capabilities and technically designed for fast printing onto dark and light garment printing directly. Based on Epson R1800 printer with the dedicated head 8 chambers of 180 nozzles/each permitting the best color combination, TrueColor F1800 provides much convenience for printing, garment loading, and easy ink system maintenance. With 8 ink channels of CMYK+WWWW, it's good at white ink printing, and can directly print delicate pictures on all colors of t-shirts.

Special features:

  • Highest resolution up to 5760*1440DPI
  • A3 size working area: 329*600mm, 13*24 inches
  • Smart technical design, portable and desktop.
  • White and color inks outputs simultaneously in one pass.
  • Separate ink levels indicator for each different color for easy ink situation.
  • CISS ink system with more convenient and economic cost
  • Create the bright prints on white and dark color t-shirt
  • Daily printing quantity: 100-150 t-shirts per day

(Click thumbnails to enlarge & view all photos)
Application: Direct Garment printing includes: t-shirts, Sweatshirt, Fashion collection, Paradigm Shirt, Personalized footwear, Jeans, Non-woven bags.

This product has the following features:

  • All the parts including the head, main board, pump, cables,etc are much easier to get in the clients local area.
  • The problems for the matching between the main board and the head are totally avoided.
  • The dtg machine is easier to get support from the Epson service center in the local areas.

Specifications

Printing method Direct to garment
Max print size 12.95*23.62 inch (329*600mm)
Printer head EPSON Micro Piezo print head
Print resolution 5760*1440 dpi
Print quality True Photographic quality
Printing Direction Smart Bi-directional Printing Mode
Printing speed 720 dpi 25 seconds/A4 size 1440 dpi 50 seconds/A4 size. 2880 dpi1 10 seconds/A4 size.
Printing method Continuous Production
Max Media weight 25 KGs NET.
Operating system Windows XP/Vista/WIN7/WIN8
Interface Double USB port
Languages English
Ink colors C, M, Y, MK, W, W, W, W./ YMCK+CMYK
Ink type BR-ECO Solvent Ink Uncoated(Korea)
Ink system CISS built inside
Height Adjustment Automatic with sensor.
Driving Power 110 V/ 220 V.
Powerconsumption 36 W/ Hour.
Ink consumption 15 ML/SQM.
Working environment 10-35 degrees.
Software BrotherJet RIP,Photoshop, CorelDraw, Illustrator,,
Package type Timber Package with fumigation
Package size L*W*H 1000*850*700 MM
Net Weight 115 KGs
Gross Weight 145KGs
Media feeding system Manual
Packing Timber with fumigation certificate.
Special remarks Customized service is available.


Contact DTGJET today for additional information, to receive custom samples or to schedule a demonstration of these tabletop/desktop T-shirt printers.
